1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes

  • 1
  • 2
  • 3

Brand Name : VINCAN

Model Number : WL-TW14KP

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package

HDMI Input Interface : HDMI（HDMI 1.4）

HDMI Input Resolution : Up to 3840X2160@30Hz

HDMI Input Color : 24bit,16.77M

HDMI OUTPUT Interface : HDMI（HDMI 1.4）

Splicing output resolution : Up to 3840x2160 / 30Hz (4K interpolation effect)

Color : 24bit,16.77M

Contact Now

1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes

4K 1 IN 4 OUT video wall processor

1. Overview

TV splicer supports 4K_ 30Hz (3840X2160) signal, The following output splicing modes can be set:

4-Channel model:2X2, 1X2, 2X1, 1X3, 3X1, 1X4, 4X1.

8-Channel model: 2X3, 3X2, 2X4, 4X2, 1X5, 5X1, 1X6, 6X1.

12-Channel model: 3X3, 2X5, 5X2, 3X4, 4X3, 3X4, 2X6, 6X2.

16-Channel model: 2X7, 7X2, 8X2, 2X8, 4X4.

2. Dimension(Unit: mm)

4- Channel model size

1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes

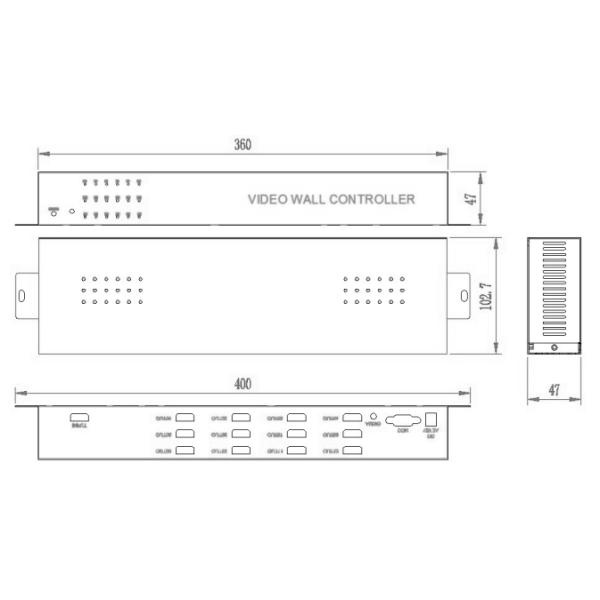

6- Channel/8- Channel/10- Channel/12- Channel model size

1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes

3. Specification

HDMI Input
Interface HDMI(HDMI 1.4)
Resolution Up to 3840X2160@30Hz
Color 24bit,16.77M
Output
HDMI Interface HDMI(HDMI 1.4)
Splicing output resolution Up to 3840x2160 / 30Hz (4K interpolation effect)
Color 24bit,16.77M
Audio output 3.5mm stereo socket
Other
control mode Mode selection button, COM port command control splicing mode, remote control splicing control (optional)
Power Supply DC12V 2A power adapter
Specifications
4-Channel model Size 310mm x 104mm x 28mm
Weight 1.37kg (Including accessories)
6-Channel model Size 360mm x 102.7mm x 47mm
Weight 1.95kg(Including accessories)
8-Channel model Size 360mm x 102.7mm x 47mm
Weight 1.96kg(Including accessories)
10-Channel model Size 360mm x 102.7mm x 47mm
Weight 2.10kg(Including accessories)
12-Channel model Size 360mm x 102.7mm x 47mm
Weight 2.11kg(Including accessories)

4. System Topology

1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes
